BBSHD Ebike: The Best Bikes to Build On, from Mountain to Fat Tire

Start with the shell. The standard kit fits threaded 68–73mm shells with a bore of roughly 33.5–36mm, and the fat-bike versions fit 100mm and 120mm. Press-fit shells need an adapter and some will never work.

• Material. Steel and aluminium frames take the clamping load well. Bafang's CAN-bus HD kit is specified as not compatible with carbon frames, and most builders avoid carbon entirely.
• Brakes. Discs, ideally hydraulic, stop a heavier, faster bike far better than rim brakes. Coaster-brake hubs do not work with the kit.
• Rear wheel. A strong rim and good spokes matter on a mid-drive, and a quality cassette or freewheel lasts longer under motor torque.
• Clearance. The motor body sits under the down tube. Low tubes, cable guides and kickstand plates can get in the way.
• Drivetrain. 1x setups are common, since the motor replaces the front derailleur's job.

The full fit check, from lockrings to chainstay room, is in the install guide.

Full-suspension frames are a frame-by-frame call. Pivots near the bottom bracket, linkages under the down tube and chain growth as the rear travels can all clash with the motor or the chain.

• Check the linkage with the shock removed, cycling the rear through full travel with the motor in place.
• Check the chainline, since the HD's stock ring sits well outboard and an offset ring is often needed.
• Check tyre clearance on the drive side, where the ring and chain sit close to the stay.

The BBSHD downhill bike is where most plans come unstuck. Many downhill frames use an 83mm shell, and there is no 83mm BBSHD. Trail and enduro frames with 73mm threaded shells are a better bet if the linkage clears.

Gearing is the other big choice. Trail riders often pick a 36T to 42T ring for steep climbs, paired with a wide cassette. Offset rings and cassettes that survive a mid-drive are in the chainring guide.

Suspension setup changes too. A BBSHD adds several kilograms low in the frame, so riders usually add a little air pressure or spring rate to keep sag where it was.

For motors that suit light trail bikes better, the motor comparison weighs the HD against the Ultra, the CYC X1 Pro and the TSDZ2.

Road frames were built for rider power and rim or light disc brakes. A 1000W motor asks more of them.

• Brakes. Rim brakes on a fast, heavy ebike are a poor match; a disc-brake road or gravel frame is far better.
• Tyres. Narrow road tyres give little grip or comfort at motor speeds. Gravel frames with wide clearance suit the HD better.
• Controls. Throttles and cut-off levers are built for 22.2mm flat bars; drop bars need inline brake sensors and careful throttle placement.
• Weight. A light road frame feels the motor's mass more than a mountain bike does.

Hybrids and city bikes are the easy middle ground. Upright position, flat bars, room for racks and often disc brakes make them some of the best commuter donors going.

Road use raises the legal point. In most US states a 1000W motor is outside the Class 1–3 e-bike rules, so a BBSHD commuter is not a street-legal e-bike there. The 750W BBS02, compared in the BBSHD vs BBS02 guide, sits within that power limit.

Longtail cargo frames usually carry threaded 68mm or 73mm shells and plenty of space under the down tube. The build is simple; the demands come later, on long climbs with weight on the back.

• Small chainring. A 36T or smaller ring lets the motor climb at high cadence and lower current, which cuts heat.
• Wide cassette. A big bottom cog gives a crawl gear for steep driveways and hill starts.
• Big brakes. Large rotors and hydraulic calipers matter more with a passenger on board.
• A throttle. It gets a heavy bike rolling before the pedals come round.

Recumbent trikes convert well too: Bafang's HD kit is specified for them alongside mountain and city bikes, and the motor's position rarely clashes with anything. Expect a very long chain and plan its routing early.

Fat bikes need the 100mm or 120mm version, matched to the shell. The motor pairs naturally with big tyres on sand and snow, and wide-frame chainline and clearance are worked out in the fat-bike build notes.

Programming a gentle launch also spares the nylon primary gear under heavy loads.

Shop builds come from specialist e-bike retailers. Luna Cycle in California did much to popularise the BBSHD in the US, and it has offered complete bikes built around the motor; the Luna Banana BBSHD ebike name belongs to that shop-built world. Model names and specs change often, so check the maker directly for the current range.

• Shop-built HD bikes use the same motor, harness and parts as a kit, so repairs and upgrades work the same way.
• Boxed ebikes use their own motors and electronics. The popular 1300W and 1500W peak-rated models do not run a BBSHD.
• Home conversions let you pick the frame, brakes and battery yourself, and cost less if you already own a good donor.

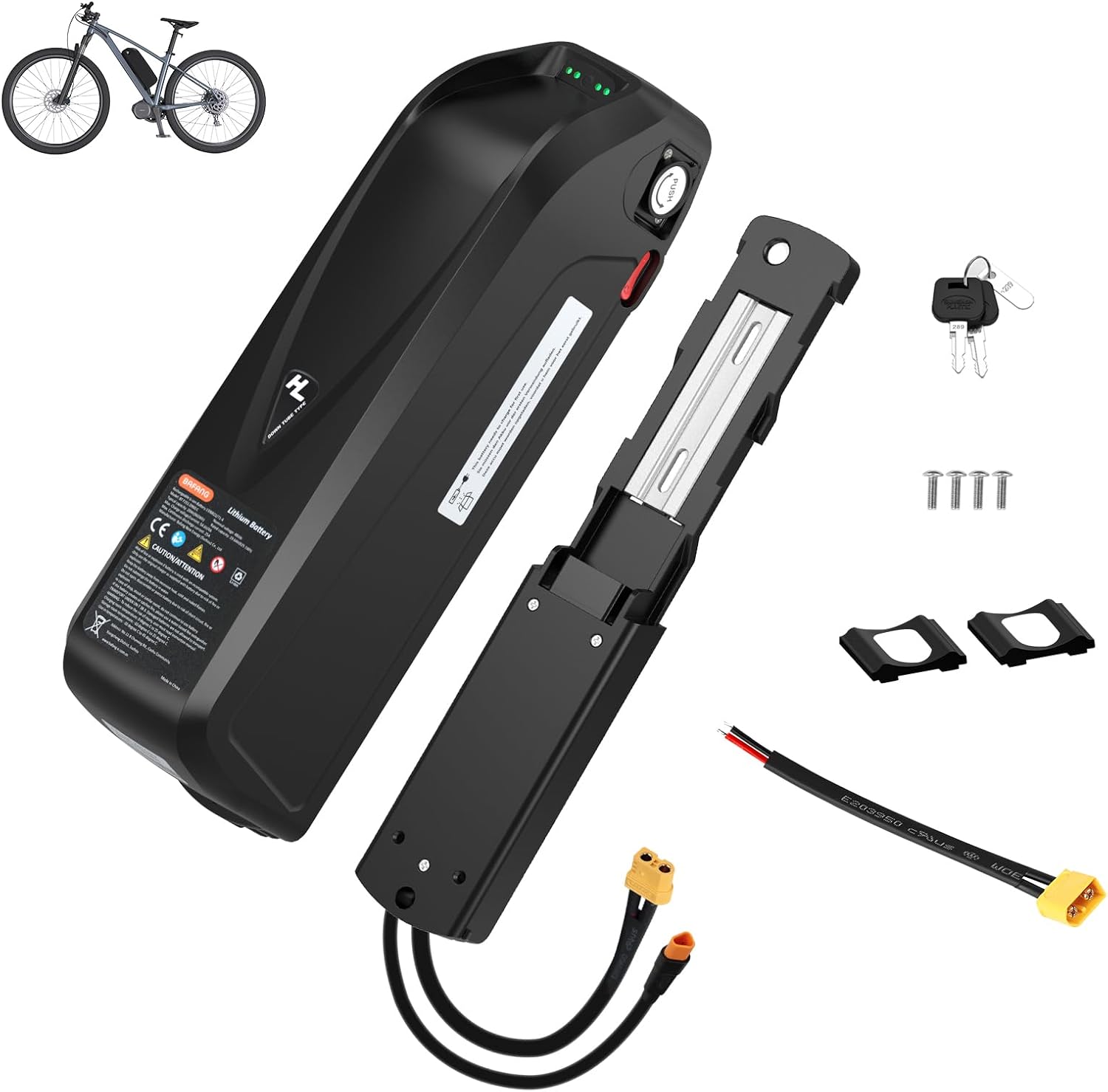

The boxed bikes arrive ready to ride, with 48V removable batteries, suspension and gears. They suit riders who want a finished bike today and do not plan to tune a controller. Their motors are specified differently, so a peak rating on a boxed bike does not compare directly with the HD's 1000W rated figure.

1. Want standard parts and easy repairs? Convert a frame with an HD kit.
2. Want the HD but no wrenching? Look at shop builds from BBSHD specialists.
3. Want to ride this weekend with no tools? A boxed ebike is the simplest route.

All three HD kits suit the donor types here; choose by shell width and whether you need a battery, as the BBSHD kit comparison lays out.
