Zeekpowa Speed Sensor for Bafang BBSHD

Zeekpowa puts the most common cause plainly: the sensor gets knocked out of line with the wheel magnet, the display throws an error, and pedal assist stops working. On most Bafang displays that error shows as code 21. The throttle may keep working, which confuses riders into blaming the motor.

Work through the likely causes in this order:

1. Speed reads zero while rolling: the sensor is not seeing the magnet. Check the gap and alignment first.
2. Magnet has slid along the spoke: it moves after a knock or a wheel true. Slide it back in line with the sensor mark.
3. Cable pinched or cut: run your fingers along the lead from chainstay to motor. Look near the rear brake caliper and the chainstay yoke.
4. Plug half pulled apart: the connection at the motor can loosen with vibration. Reseat it and check for corrosion.
5. Sensor housing cracked: water gets in and the reed or hall element dies. That is the time for a new sensor.

If everything checks out and the error stays, the fault may sit in the controller's input rather than the sensor. Other error codes, and what each one points to, are decoded in the maintenance guide.

Getting the geometry right is the whole trick.

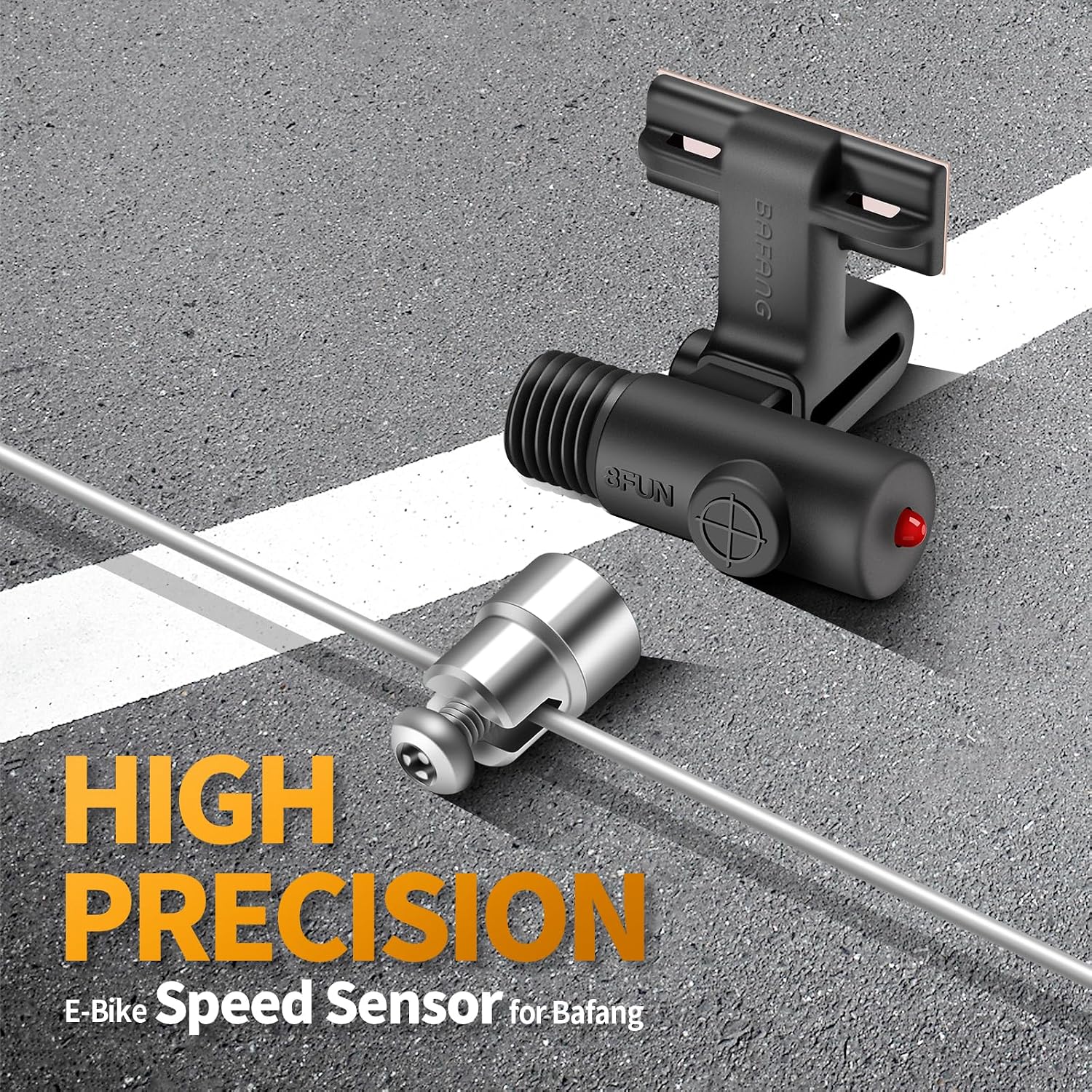

• Line up the marks. Most Bafang-style sensors have a line or arrow on the face; the magnet's centre should pass straight across it.
• Keep the gap small. A few millimetres is the usual target. Too wide and the sensor misses pulses at speed; too close and a wheel wobble can strike it.
• Clear the disc brake. On the non-drive side the caliper and rotor are right there. Route the sensor and magnet so neither touches the rotor.
• Spin and watch. Lift the wheel, spin it by hand and watch the display's speed readout come alive.

After the first ride, check the magnet and sensor again. Spoke magnets can creep along the spoke under braking vibration, and a zip-tied sensor can rotate a few degrees on a round chainstay. A second zip tie or a small strip of rubber under the band keeps it put.

Fat bikes with 100mm or 120mm shells often have wider stays and bigger rotors; check frame clearance in the fat bike guide.

That route passes through the dirtiest, most crash-prone part of the bike. Treat it with care.

• Follow the chainstay underside and use zip ties every hand-width so the lead cannot snag the chain or the spokes.
• Keep slack at the rear axle only if you have suspension; a hardtail needs none.
• Tuck the plug up behind the motor where a rock strike cannot reach it.
• Grease the pins with dielectric grease before joining the halves.

Check the plug on your motor's speed-sensor lead against the new sensor before fitting. Bafang has used a standard waterproof connector on this lead for years, and Zeekpowa sells this sensor as a direct replacement for the BBS family, but a mismatched aftermarket motor lead is worth ruling out before you zip-tie everything.

The sensor also carries a job beyond the speedometer. Bafang's controllers use its signal to apply the speed limit set in the controller, fading assist as you reach it. With no signal they cannot enforce that limit, so they switch assist off instead. That is a deliberate safety choice, and it is why a spoke magnet a few millimetres out of line parks a 1000W motor.

For the full harness picture, including where the speed lead sits in relation to the 1T4 and the controller, see the install guide.

Riders who put the most wear on this part share a few habits:

• Chunky singletrack, where rocks flick up and catch the lead or the magnet.
• Hanging-rack car carriers, where the chainstay rests against the rack arm.
• Frequent wheel removal for transport, which knocks the magnet and pulls the lead.
• Cargo and trailer hitches mounted at the rear axle, right beside the sensor.

Three fit checks: the plug should match the one on your motor's speed lead, the flange mount should suit your chainstay shape, and you should confirm whether you need a new spoke magnet or can reuse the old one. Zeekpowa lists the sensor for BBS01B, BBS02B and BBSHD mid drives and for Bafang hub motors, so one spare can cover a mixed household of Bafang bikes.

This sensor pairs naturally with the other wear parts on the same system. Hall-sensor brake levers handle motor cut-off, and a fresh thumb throttle covers the other part that tends to break in a fall. If the assist fault turns out to be in the display rather than the sensor, compare the screens that read these codes in the display guide.
